Panoramic Defects Inspection Equipment

360 Panoramic Defects Inspection Equipment

360 Panoramic Defects Inspection Equipment

Advanced Defects Inspection equipment for transparent food packaging, with national invention patents. Multi-directional inspection avoids dead angles, ensuring accurate and efficient results. Deep learning-based computer vision system detects objects, defects, and surface damage with less than 0.01% leakage rate. User-friendly interface allows non-technical operators to use easily.



  • Original Region :

    China
  • Lead Time :

    30 days after receiving deposit and samples
  • Shipping Port :

    Guangzhou
  • Payment :

    TT
  • Min order :

    1
New Products

Panoramic Defects Inspection Equipment

Product Introduction

Panoramic Defects Inspection equipment is mainly used for food quality inspection using transparent packaging. This equipment has advanced technology and unique design, and has obtained national invention patents. In terms of mechanism design, materials can be inspected from all directions at the same time, effectively avoiding dead angles of inspection or missed inspections caused by movable foreign objects, so as to ensure efficient and accurate inspection results. In terms of detection technology, the computer vision system based on deep learning algorithm has excellent detection ability and precision, and the leakage rate is less than 0.01%. It can identify and alarm all relevant problems in time, such as objects, defects and surface damage, etc., to ensure your Food quality and safety.In addition, our equipment has an easy-to-use operation interface and intuitive result analysis, even operators without professional technical background can easily use it.





Main Features



Panoramic Defects Inspection equipment consists of 4 parts:

1. The feeding and bottle-separating mechanism is composed of a pipeline conveyor belt and a device for bottle-separating rollers. The function is to separate the incoming materials by a certain distance, and different materials will not affect each other during subsequent inspections;

2. The lifting mechanism uses inclined pipes to lift the lifting to a certain height, so that the warehouse can slide down freely by using gravity in the future;

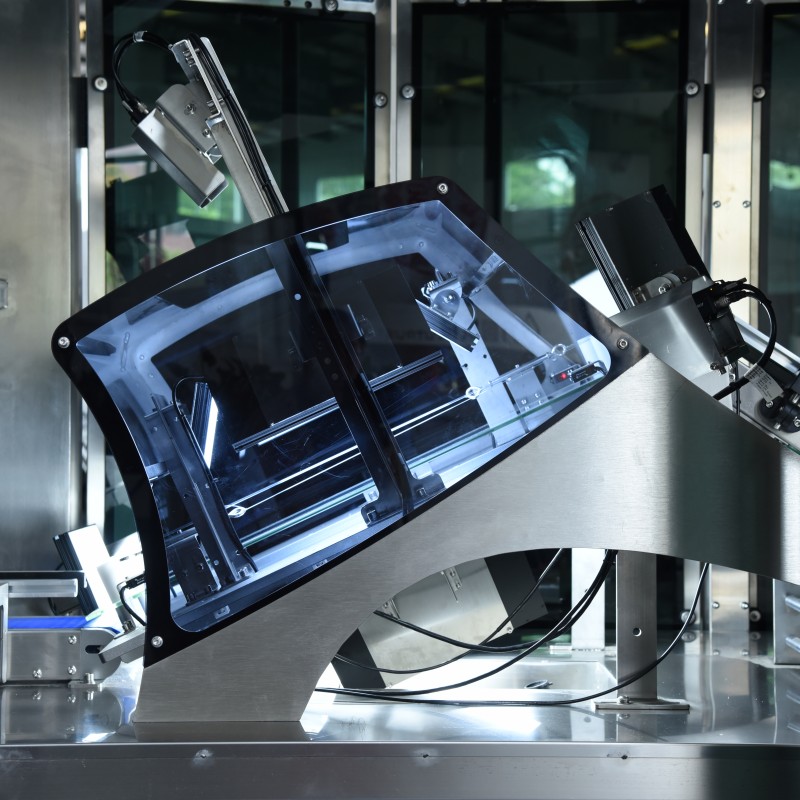

3. The slideway detection mechanism, when the unloading material is lifted to the point by the lifting mechanism, it enters the highest transparent glass slideway, and under the action of weight, the unloading material slides down. During the sliding process, it is triggered by the sensor and installed on the right front and left side of the slideway. The 4 UAVs at the rear, above and below take pictures at the same time. The 4 UAVs can take pictures of the pier at 360° without dead angle. The photo information is transmitted to the computer. Send to PLC;

4. The rejecting mechanism, the material slides from the slide to the pipe belt of the rejecting mechanism, and the PLC controls the rejecting mechanism to reject the materials with abnormal quality according to the results transmitted by the computer software system, so as to ensure the normal material pipeline to the next pipeline





Product Parameter



   Number of cameras

4 (Hikvision)
Computer
DELL Precision Tower 5820
Inspection efficiency
40~50 times/minute
Voltage
AC220V 50Hz
Power
2KW
Weight
800KG
Dimensions
4000mm×1400mm×1950mm (L*W*H)



Applictaions







Our Service on Panoramic Defects Inspection equipment



Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.



FAQ

1.What is your installation services? 2.What about your guarantee of quality?
User mauual and videos to surpport for installing,debugging,operation of the machine.It will indicate you how to use this machine well. The Edible Bird's Nest Cleaning Picking Machine is 1 year warranty,all machine part can be replaces within 1 year if broken(not including man made)
3.If we have very special request for the production line,could you help me to do the design? 4.Can I visit your factory?
Experienced mechanical designer customized-design provided. Yes,welcome please.
5.If we have samoles of new products,can you help to analysis and design the machine? 6.Do you have certificate?
Yes.Our technical department can help to analysis design and test the new products you offered. Yes,we have some,like CE/SGS.
