Semi automatic glass beverage wine small plastic bottle manual capper machine

Semi automatic glass beverage wine small plastic bottle manual capper machine

The semi-automatic capping machine adopts the four-knife sealing method, with the addition of bearings inside the anti-theft hob, which is improved with reference to the latest imported Italian capping machine head. It is aluminum anti-theft capping equipment for high-grade plastic bottles and glass bottles.It is usually used in wine bottle, olive oil bottle and medicine bottle.
  • Item NO:UT210
  • Min order:1
  • Payment:TT
  • ShippingPort:Guangzhou
  • Original Region:Guangzhou China
  • Lead Time:30 days after receiving deposit
New Products

Advantages of company profile


Capping Machine products showCapping Machine products parameter



Specification


Function
aluminum screw cap sealing, stelvin bottle capping
Capping Rollers
4 (2 first rollers / 2 second rollers)
Capping Speed
20-25 bottles/min
Capping Height
35-300mm(adjustable)
Capping Diameter
12-33mm
Voltage
220V,50/60Hz
Power
0.37KW
Weight
130KG
Dimension
620*420*1420mm(L*W*H)


Capping Machine show detailsfeature

1. Four knives sealing method is adopted for sealing, with a simple structure and convenient adjustment
2. Using the latest generation of mechanical design, the bottle body does not rotate during the sealing process, but the sealing hob rotates to complete the sealing. It is reliable and safe, avoiding the shifting and scattering of the product inside the bottle, and is especially suitable for fragile and liquid product sealing and packaging.
3. The hobbing work and bottle lifting is controlled by mechanical cams, with stable and reliable operation
4. Easy to operate, just one button to complete the sealing.
5. High processing precision, the main body is designed and manufactured with all stainless steel materials, in line with the production workshop design requirements.
6. Changing the diameter of the bottles requires replacing the pressure head, and the replacement time is about 15 minutes.

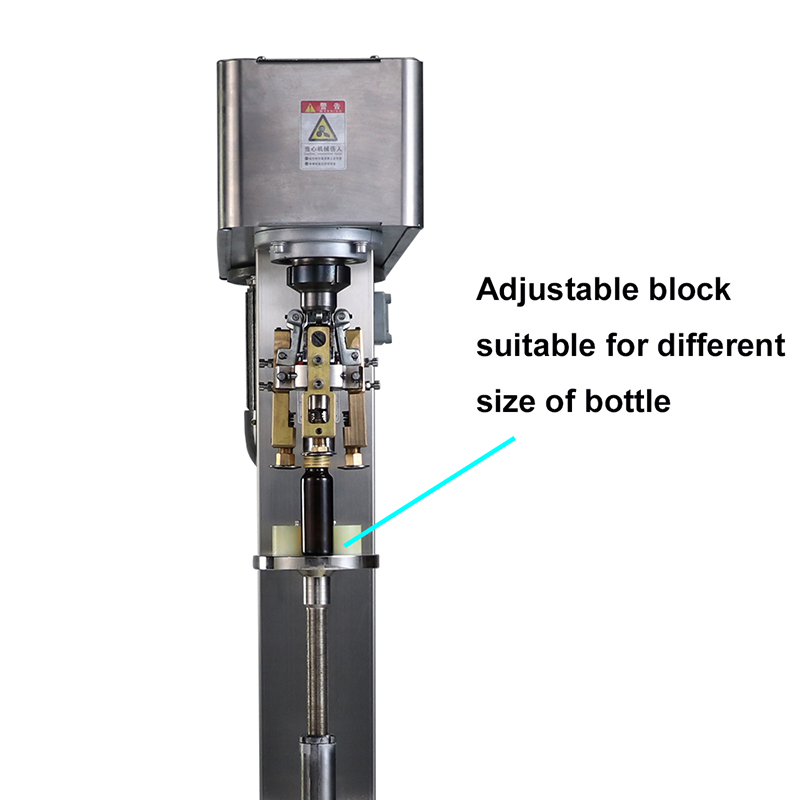

7.Changing the bottle sealing height does not require changing the accessories, using the manual rotation of the pallets, which takes about 5 minutes to adjust. If the size difference in bottle height is too large, it requires replacing the pallets.
8. The defect rate is very low, less than one ten-thousandth.
9. The pressure head is made of 45# steel with quenching treatment, and the hardness is more than 50 degrees, with a service life of more than 1 million cans
10. Sealing knife is made of chrome 12 materials, with a life of more than 6 million times sealing.


Applications

It is widely used in food industry, chemical industry, medical and pharmaceutical industry
It is suitable for sealing the anti-theft threaded caps of various oral liquids, soups, pharmaceuticals and daily chemicals.Capping Machine applicationsUtrust Pack personal business card

Pre-Sales Service

♦ Inquiry and consulting support

♦ Sample testing support
♦ View our Factory
♦ More than 95% of the timely response rate timely response to customer questions

After-Sales Service

♦ Training how to install the machine, training how to use the machine
♦ Engineers available to service machinery overseas.
♦ Use online contact methods such as skype whatsapp facebook to provide online services to customers

Packing & Delivery


Packing and Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

FAQ

1.What is your installation services? 2.What about your guarantee of quality?
User mauual and videos to surpport for installing, debugging, operation of the machine. It will indicate you how to use this machine well. The machine is 1 year warranty, all machine part can be replaces within 1 year if broken(not including man made)
3.If we have very special request for the production line,could you help me to do the design? 4.Can I visit your factory?
Experienced mechanical designer customized-design provided. Yes, welcome please.
5.If we have samoles of new products, can you help to analysis and design the machine? 6.Do you have certificate?
Yes. Our technical department can help to analysis design and test the new products you offered. Yes, we have some, like CE/SGS.
