Let's take a look at our top selling product line in 2020

When I walk into the supermarket and see a wide range of goods on the full shelves, I don't think about the brand of goods I want to buy, but how are these goods packaged? Do you think about the same problem when you see related products?
You know what? Different products will be packaged in different ways because of different characteristics of products, different requirements, different processes and different packaging methods.

In 2020, affected by the new coronavirus epidemic, staying at home less or not going out is to contribute to the country. If you spend more time at home, you can watch TV dramas that you didn't have time to watch before, play games that you didn't have time to play before, and eat snacks in your spare time. The panic caused by the epidemic is reduced. At the same time, the sales business of dried fruit snacks is increased. The epidemic makes us know that all goods are sold as much as possible Reduce the spread of human contact, then unmanned automatic packaging is very important.
Now let's take a look at the two packaging production lines designed and produced by us for snack manufacturers. They are fish skin peanut and cashew nut packaging production line and litchi dry packaging production line.
Similarly, due to the impact of the epidemic, there was less exercise at home, more snacks, and I don't know if I felt a lot fatter. At this time, I realized that health was more important, so I began to lose weight and exercise. Besides exercise, I also paid attention to the control of meals, so I exploded the shake flask meal powder.
"Lose weight" has become an eternal topic, from the initial diet and more exercise, to surgery liposuction, and now through diet and nutrition to reduce fat. Meal replacement powder is born under the concept of healthy diet and keeping body shape! Nowadays, shaker bottled meal replacer is popular among the younger generation and office workers. Why is it so hot? Because this kind of bottle is convenient for everyone to carry and drink meal substitute powder at any time. Consumers first pour hot water into the bottle, close the lid and shake it to make the powder fully dissolved in water, then they can drink.
Therefore, the company received a lot of shaker bottle meal powder production line. How to realize automatic packaging of meal replacer? Please refer to this article (click the text on the right to enter) - > Try to pack meal replacement powder in bottle?

If the production capacity of meal substitute powder is more than 60 bottles / min, please refer to the following video: the process requirements of this line are filling granular materials, powder materials, nitrogen filling, labeling
The height and length of the customer's site of this line are limited. When designing the layout plan, it is specially made into a curved direction, and at the same time, it can meet the demand of a liquid nitrogen filling machine dripping at two ends. Because the filling amount of granular materials is not much, and then with the site height, it selects the linear 4-bucket linear scale, which is suitable for small particle speed of 15-20 bottles / min, and the speed is not enough to make up the quantity, so this line selects three linear scales (from the perspective of cost performance, the site is high enough, and ten head combination is the best choice).

The main automation equipment of shake flask production line is introduced below

1. Automatic bottle unscrambler

The bottles are put into the bin of the bottle sorting machine for sorting. When sorting, the bottles are inverted and righted by the bottle turning mechanism, but not directly through the bottle turning mechanism.

Through the bottle turning mechanism, the bottles are directly output from the bottle outlet to the air duct or the conveying system

2. Four bucket linear scale

It is suitable for the quantitative weighing of sugar, salt, rice, beans, seeds, condiments, washing powder, feed, desiccant, plastic granules, hardware and other granular and powdery products. It can be used together with the packaging machine for automatic filling and packaging.

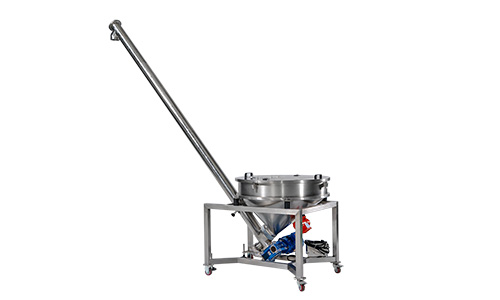

3. Powder screw feeder

Function: use motor to drive screw to lift powder
Lifting speed: 3 m3 / h

4. Double head powder filling machine

Function: filling meal substitute powder into bottle

Filling speed: 50-60 bottles / min (30g / bottle)

5. Automatic capping machine

The automatic servo capping machine is suitable for all kinds of plastic or metal screw caps, anti-theft caps, crystal caps of plastic bottles and glass bottles. The two axis manipulator can accurately move and locate the caps and place them on the bottles. The manipulator can simulate human hands to grasp the caps.
Speed: 15-45 bottles / min
