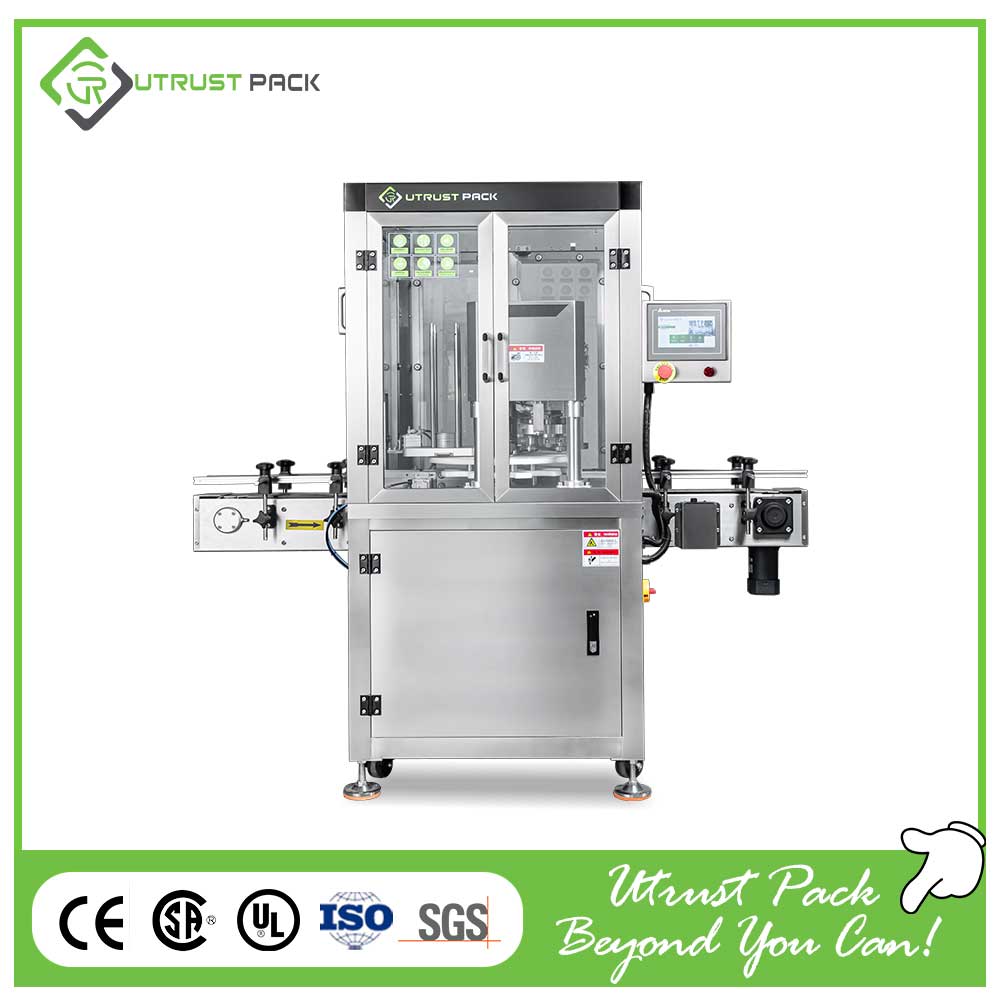

Hot sell fully automatic soda canning machine is an ideal packaging for food,medicine,tea,and chemical industries.
Using servo motor to drive turntable.
Item NO :
UT1AFG3Original Region :
ChinaLead Time :
10 days after receiving depositShipping Port :
GuangzhouPayment :
T/TMin order :
1
Product Introduction
This machine dopt the sealing way is the sealing hob rotate instead of cans body rotating to complete sealing cans. It is safe and stable,specially for fragile and liquid product.
Under the premise of ensuring the smoothy and safely use,the speed of our sealing machine is achieved the fastest in domestic which is 45~65 cans per minute.
Main Features
*Production capacity: with our new design sealing head, it could reach up to 65 cans/min, while other single head can seamer just reach up to 50 cans/min by using higher power motors.
*Save energy: save 30% energy to reach same productivity than before. For example, if it need to run at 40 cans/min, the frequency rate is 56Hz on old version, while it just 32Hz on this new one.
*Factory Price Fully Automatic Tomato Canning Machinery adopts servo motor driven with simple structure, stable operation and low noise characteristics.
*Turntable automatic reset positioning after initiating;
*Auto stop and alarm function in case of cans stucking within the turntable, to effectively prevent mechanical structure damage
*One-button reset function for turntable positioning after taking out the cans
*Easy changing mould function: replace the turntable and the sealing position can be automatically memorized with one-button setting, so as to eliminate manual adjustment on the screws for different position.
*Production capacity of 35-65 cans/min and easy to be connected with other machines for packing line.
*Sealing chuck head and sealing rollers are made with 440C stainless steel material and go through vacuum quenching tempering heat treatment to ensure high hardness and durability.
*Can Body does not rotating with good sealing performance.
*Suitable for a variety of cans including plastic cans, tinplate cans, aluminum cans, paper cans, and etc and widely applicable in food, beverage, and pharmaceutical industries.
Product Parameter
|
Function
|
tin canning, can seaming, tin seamer, can sealing, can sealer
|
|
Sealing rollers
|
4(2 first rollers/2 second rollers)
|
|
Sealing Speed
|
35-65cans/min
|
|
Sealing Height
|
40-200mm (adjustable)
|
|
Sealing Diameter
|
50-100mm (8 station)/ 101-153mm (6 station)
|
|
Voltage
|
220V,50/60Hz
|
|
Power
|
1.7KW
|
|
Weight
|
300KG
|
|
Dimension
|
1800*900*1450mm (L*W*H)
|
Applictaions
Contact Supplier
Our Service on Factory Price Fully Automatic Tomato Canning Machinery
* Inquiry and consulting support.
* Sample testing support.
* View our Factory
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
FAQ
| 1.What is your installation services? | 2.What about your guarantee of quality? |
| User mauual and videos to surpport for installing,debugging,operation of the machine.It will indicate you how to use this machine well. | The Factory Price Fully Automatic Tomato Canning Machinery is 1 year warranty,all machine part can be replaces within 1 year if broken(not including man made) |
| 3.If we have very special request for the production line,could you help me to do the design? | 4.Can I visit your factory? |
| Experienced mechanical designer customized-design provided. | Yes,welcome please. |
| 5.If we have samoles of new products,can you help to analysis and design the machine? | 6.Do you have certificate? |
| Yes.Our technical department can help to analysis design and test the new products you offered. | Yes,we have some,like CE/SGS. |
